Influence Plot of a PCA Model

Plots the residual distance of each sample to a PCA model (Q residual or DModX) against its Hotelling's \(T^2\), with their limits at each confidence level, from q_residuals() or dmodx(). It is drawn like the outlier map of a robust PCA, plot_outlier_map().

Usage

plot_influence(
  x,
  label = NULL,
  labels = 3,
  relative = FALSE,
  shade = FALSE,
  log = FALSE,
  colour_by = c("type", "distance"),
  title = NULL,
  ...
)

Arguments

x: The result of q_residuals() or dmodx().
label: The names of the samples: a vector with one value per sample. By default, their row numbers.
labels: The number of most outlying samples to label (beyond a limit at the highest confidence level). Default is 3; use 0 for no labels.
relative: If TRUE, plot the distances divided by their limits at the highest confidence level. Default is FALSE.
shade: If TRUE, shade the three outlying regions in grey, darker for more harmful samples (extreme, residual, both), and name them in their corners. Default is FALSE.
log: If TRUE, use logarithmic axes, which spread out the regular samples when a few are far away. Zero distances are drawn at the smallest positive distance. Default is FALSE.
colour_by: The colors of the points: "type" (default), by type, or "distance", by their distance relative to the limits, \(\max(T^2/T^2_{lim}, Q/Q_{lim})\), on a rainbow scale from dark red to blue, as in plot_outlier_map().
title: The plot title.
...: Further arguments passed to ggplot2::geom_point() to style the points, such as alpha (default 0.85), size (2.2), stroke (0.4) or colour (the outline, "black"). size can also be a numeric vector with one value per sample, such as the concentration of an element, to vary the size of the points, with a legend.

Value

A ggplot object.

Details

The limits at the highest confidence level (dashed lines) divide the plot into four types of samples:

regular samples (bottom left);
extreme samples (bottom right): a high \(T^2\) but well described by the model, for example a high concentration;
residual samples (top left): not described by the model (another matrix, a contamination, an instrumental problem);
samples beyond both limits, the most harmful.

The limits at lower confidence levels are dotted, dot-dashed, ... lines.

With relative = TRUE, each distance is divided by its limit at the highest confidence level, so both limits are at 1 whatever the model, which puts plots of different models on the same scale.

Author

Christian L. Goueguel

Examples

data(forageLIBS)
pca <- stats::prcomp(forageLIBS[-(1:14)])
influence <- q_residuals(pca, k = 3, conf_level = c(0.95, 0.99))

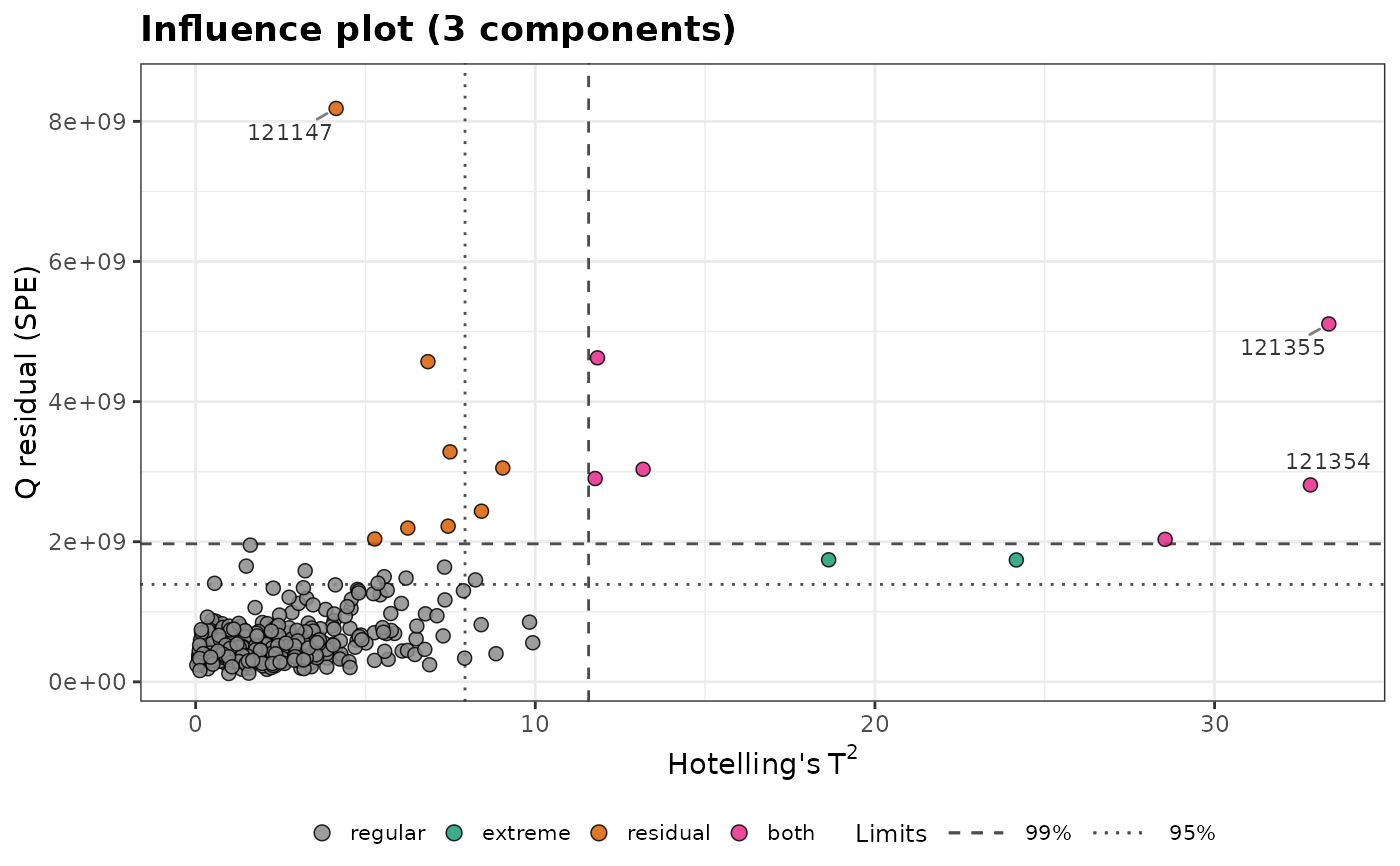

plot_influence(influence, label = forageLIBS$Measurement)

# the same options as plot_outlier_map(): distances relative to the limits,
# shaded outlying regions, logarithmic axes and colors by distance

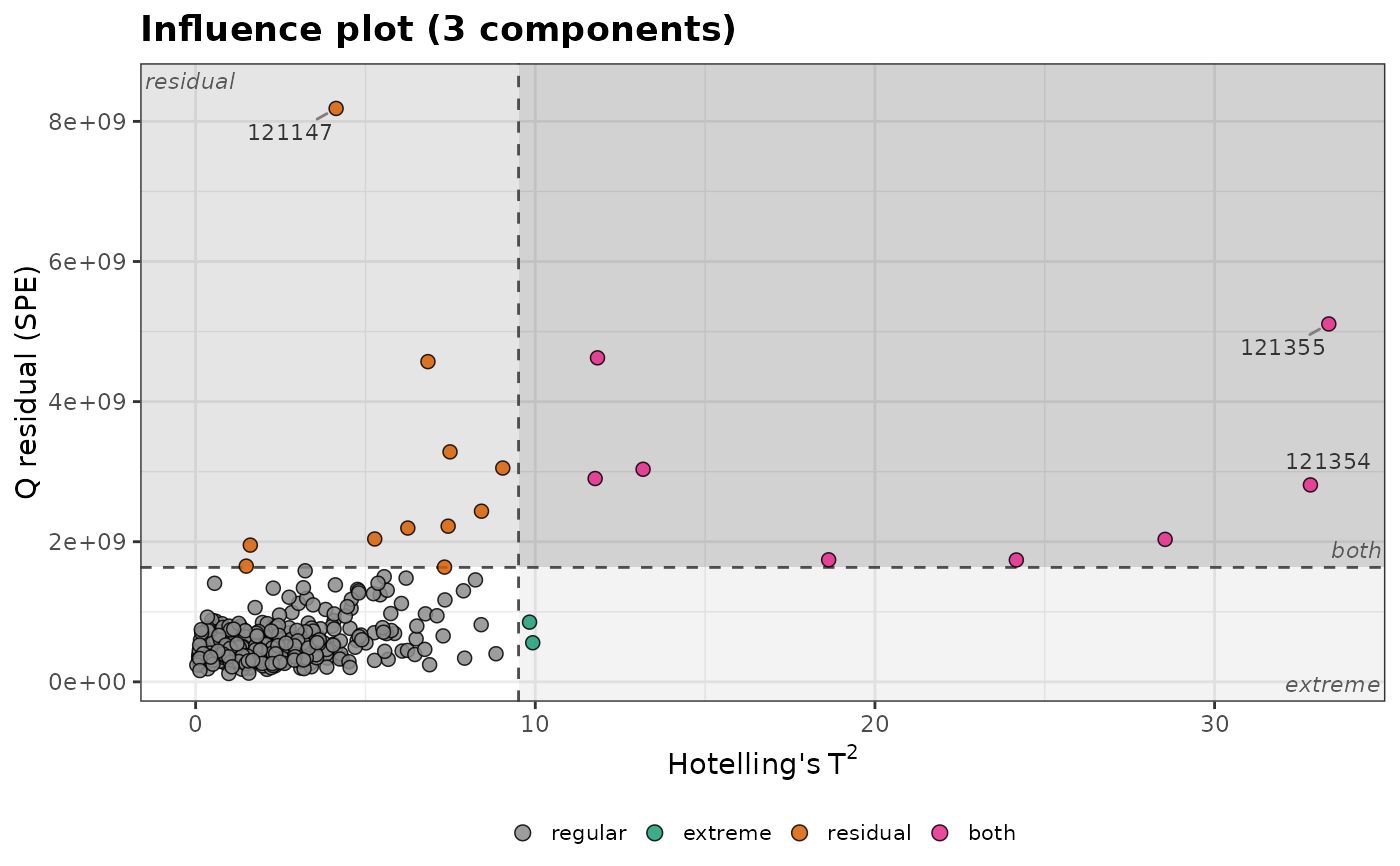

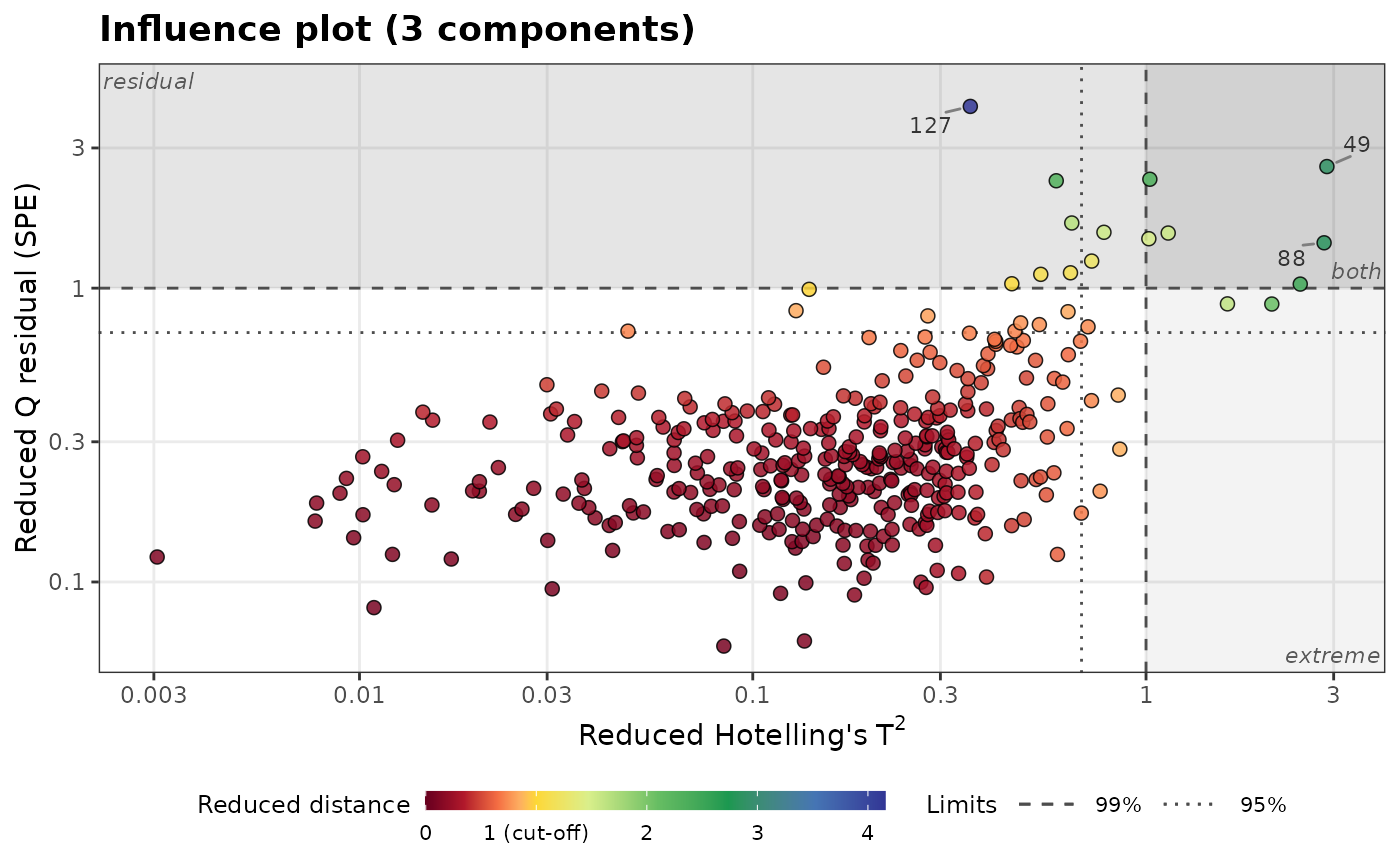

plot_influence(influence, relative = TRUE, shade = TRUE, log = TRUE, colour_by = "distance")


# a single limit at 97.5%, with the outlying regions shaded
influence_975 <- q_residuals(pca, k = 3, conf_level = 0.975)
plot_influence(influence_975, label = forageLIBS$Measurement, shade = TRUE)
