Adjusted Boxplot

This function generates the adjusted boxplot, which is a robust graphical method for visualizing skewed data distributions. It provides a more accurate representation of the data's spread and skewness compared to standard boxplot, especially in the presence of outliers.

Usage

adjusted_boxplot(
  x,
  plot = TRUE,
  id = NULL,
  group = NULL,
  scales = c("free_y", "fixed"),
  points = c("outliers", "all", "none"),
  label_outliers = FALSE,
  show_n = TRUE,
  show_mean = FALSE,
  annotate = NULL,
  horizontal = FALSE,
  log = FALSE,
  fill = "grey85",
  xlab = NULL,
  ylab = NULL,
  title = NULL,
  caption = TRUE,
  base_size = 11,
  x_labels_angle = 0,
  box_width = 0.5,
  notch = FALSE,
  notch_width = 0.5,
  staple_width = 0.5,
  xlabels.angle = deprecated(),
  xlabels.vjust = deprecated(),
  xlabels.hjust = deprecated(),
  box.width = deprecated(),
  notchwidth = deprecated(),
  staplewidth = deprecated()
)

Arguments

x: A data frame (or matrix) of numeric variables, with optionally the columns id and group.
plot: A logical value indicating whether to plot the boxplot (default is TRUE) or to return its statistics.
id: Optional column of x (unquoted or as a string) identifying the observations, such as sample names: it names the outlying observations in the outliers table and with label_outliers.
group: Optional column of x (unquoted or as a string) of groups, such as sites or treatments: the boxes of each group are drawn side by side, with their own statistics. Rows with a missing group are left out.
scales: "free_y" (default), one panel per variable with its own value axis, or "fixed", a common value axis.
points: The observations drawn: "outliers" (default), the outlying ones; "all"; or "none".
label_outliers: A logical: label the outlying observations with their id, else their row number (FALSE, default). The labels are moved apart so that they do not overlap; where many outliers crowd together, some are left unlabeled.
show_n: A logical: write the number of values below each box (TRUE, default).
show_mean: A logical: mark the mean of each box with a diamond (FALSE, default).
annotate: Statistics added to each box (none by default): some of "shape", "outliers", "fences", "median", "spread", "location", "test" and "missing", or "all" (see Details).
horizontal: A logical: horizontal boxes (FALSE, default), suited to many variables or long names.
log: A logical: a logarithmic value axis (FALSE, default), for variables spanning orders of magnitude. The statistics are those of the data, not of their logarithm.
fill: The fill color of the boxes (default "grey85"), or one color per group (or per variable without group).
xlab, ylab: The titles of the axis of the variables (or groups) and of the value axis. Default is none.
title: The plot title. A long title is split into a title and a subtitle.
caption: TRUE (default), a caption naming the boxplot and its whiskers; FALSE, no caption; or a caption of your own.
base_size: The size of the text, in points. Default is 11.
x_labels_angle: The angle (in degrees) of the labels below the boxes. Default is 0 (horizontal).
box_width: The width of the boxes (default 0.5).
notch: A logical value indicating whether to draw notches (default is FALSE): the notch spans the median $\pm 1.58\,\text{IQR}/\sqrt{n}$ (McGill et al., 1978); two medians whose notches do not overlap differ roughly at the 5% level.
notch_width: The width of the notch relative to the box (default 0.5).
staple_width: The width of the staples at the ends of the whiskers, relative to the box (default 0.5).
xlabels.angle, xlabels.vjust, xlabels.hjust, box.width, notchwidth, staplewidth: Use x_labels_angle, box_width, notch_width and staple_width; the justification of the labels now follows their angle.

Value

If plot = TRUE, a ggplot2 object.
If plot = FALSE, a list of tibbles: stats, with one row per variable (and group): the numbers of values n and of missing values n_missing, the whisker ends lower and upper (the most extreme values within the fences), the quartiles q1 and q3, the median, the fences, the notch limits, the medcouple, the 95% confidence interval of the median (median_lower, median_upper), the iqr, the robust coefficient of variation rcv (%), the biweight location, the mean, and the numbers of outlying values n_outliers and of expected ones in clean data expected_outliers; outliers, with the outlying values, their row in x, their id and their tail out ("lower" or "upper"); and, with group, tests, the Kruskal-Wallis test between the groups of each variable (statistic, df, p_value).

Details

The function is based on the medcouple (MC) measure computed on the data and which robustly measures skewness. This measure is bounded between -1 and 1. The medcouple is equal to zero when the observed distribution is symmetric, whereas a positive (resp. negative) value of MC corresponds to a right (resp. left) tailed distribution. The fences are, for $\text{MC} \geq 0$, $$[Q_1 - 1.5 e^{-4\,\text{MC}}\,\text{IQR};\; Q_3 + 1.5 e^{3\,\text{MC}}\,\text{IQR}]$$ and, for $\text{MC} < 0$, $$[Q_1 - 1.5 e^{-3\,\text{MC}}\,\text{IQR};\; Q_3 + 1.5 e^{4\,\text{MC}}\,\text{IQR}],$$ calibrated by Hubert and Vandervieren (2008) so that about 0.7% of the observations of a clean, moderately skewed distribution are flagged, as with Tukey's boxplot for normal data. The whiskers end at the most extreme observations within the fences, and the observations outside are drawn as points. The statistics are computed by robustbase::adjboxStats(), whose quartiles are Tukey's hinges, as in boxplot(). The method suits distributions that are not excessively skewed, i.e. with $|\text{MC}| \leq 0.6$.

Layout. Each variable is drawn in its own panel, with its own value axis (scales = "free_y"), so that variables of different scales or units stay readable; scales = "fixed" draws them in one panel, on a common axis. With group, the boxes of the groups are side by side in the panel of each variable. Below each box, n is the number of non-missing values.

Points. By default, the outlying observations are drawn, slightly spread sideways so that equal values do not hide each other. points = "all" draws every observation, the outlying ones in black, as some journals require; label_outliers = TRUE names the outlying observations by id (else by row number), and the outliers table of plot = FALSE gives them all.

Annotations. annotate adds, for each box:

"shape": the medcouple (MC, marked (> 0.6) beyond the range of the method), or the g and h of the generalized boxplot, which explain the asymmetry of the whiskers;
"outliers": the number of flagged values, with the number expected in clean data (about 0.7% for the adjusted boxplot, which Hubert and Vandervieren calibrated as Tukey's boxplot for normal data, and alpha for the generalized one): many more flagged values than expected point to real outliers;
"fences": the fences beyond which values are flagged, as dashed marks (on the sides with outlying values), the whiskers ending at the last values inside;
"median": the median with its distribution-free 95% confidence interval, from the order statistics (Md); the notches are made to compare two medians, and are not a confidence interval of one;
"spread": the interquartile range and the robust coefficient of variation $\text{rCV} = \text{IQR} / (1.349\,\text{median})$, in percent, read as a relative standard deviation;
"location": the biweight location (biweight_location()), a robust mean, marked by a cross (the mean, with show_mean, is pulled by the outlying values);
"test": with group, the p-value of the Kruskal-Wallis test between the groups, below the variable name. With several variables, adjust the p-values for multiple testing (see p.adjust() and the tests table);
"missing": the number of missing values, next to n.

annotate = "all" adds them all (the test only with group). The caption gives their key. With several boxes in a panel, each statistic takes two short lines: for many groups, make the figure wider or choose fewer annotations. All the values are in the stats and tests tables of plot = FALSE.

Publication figures. Give the units of the variables in their names (such as "Ca (%)", with check.names = FALSE in data.frame()) or in ylab. Make the plot at its printed size, with base_size set to the text size of the journal (often 7 to 9 points), and save it with ggplot2::ggsave(), for example ggsave("figure.pdf", p, width = 85, height = 70, units = "mm") for a single column. The caption says which boxplot is drawn, because readers assume Tukey's whiskers (1.5 IQR) otherwise; use caption = FALSE and state it in the figure legend instead, for example: "Adjusted boxplots (Hubert and Vandervieren, 2008): the boxes show the quartiles and the median, the whiskers extend to the most extreme values within the medcouple-adjusted fences, and the points are the values outside."

References

The adjusted boxplot is based on the methodology described in:

Brys, G., Hubert, M., Struyf, A., (2004). A Robust Measure of Skewness. Journal of Computational and Graphical Statistics, 13(4):996-1017
Hubert, M., Vandervieren, E., (2008). An adjusted boxplot for skewed distributions. Computational Statistics and Data Analysis, 52(12):5186-5201
McGill, R., Tukey, J. W., Larsen, W. A. (1978). Variations of box plots. The American Statistician, 32(1):12-16 (notches)

Author

Christian L. Goueguel

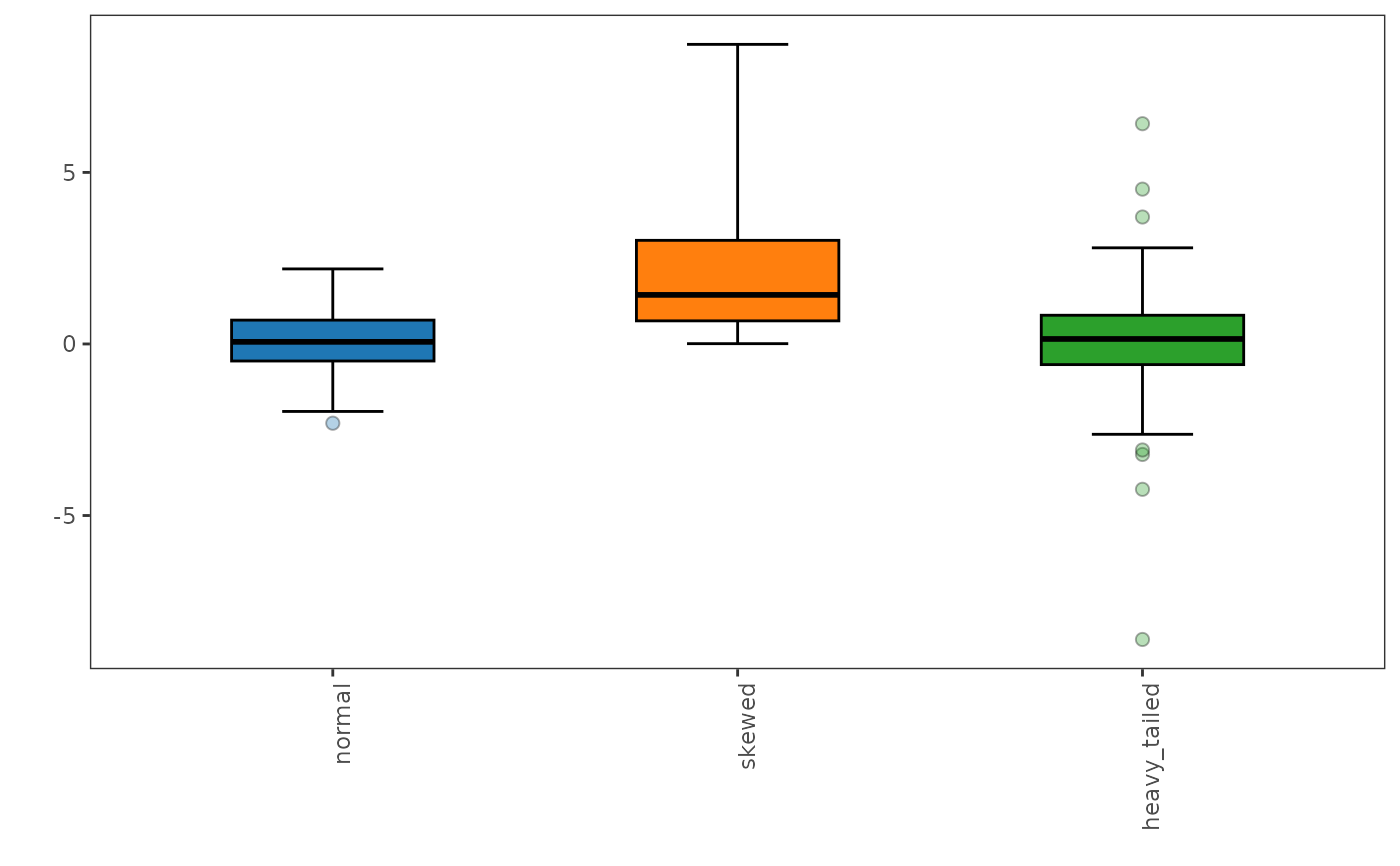

Examples

data(forageLIBS)
minerals <- forageLIBS[c("Measurement", "Ca", "Mg", "P", "K", "S")]

# mineral contents, each on its own axis, the outlying samples named: a
# figure of a journal page width
p <- adjusted_boxplot(minerals, id = Measurement, label_outliers = TRUE,
                      ylab = "Content (%)", base_size = 8)
p

# ggplot2::ggsave("minerals.pdf", p, width = 175, height = 70, units = "mm")

# the statistics and the outlying samples
res <- adjusted_boxplot(minerals, id = Measurement, plot = FALSE)
res$stats
#> # A tibble: 5 × 21
#>   variable     n n_missing  lower    q1 median    q3 upper lower_fence
#>   <fct>    <int>     <int>  <dbl> <dbl>  <dbl> <dbl> <dbl>       <dbl>
#> 1 Ca         368         0 0.292  0.514  0.629 0.772 1.2        0.291
#> 2 Mg         368         0 0.0798 0.172  0.204 0.24  0.342      0.0754
#> 3 P          368         0 0.114  0.218  0.260 0.301 0.428      0.102
#> 4 K          368         0 0.981  1.72   2.01  2.38  3.58       0.939
#> 5 S          366         2 0.12   0.17   0.2   0.23  0.32       0.08
#> # ℹ 12 more variables: upper_fence <dbl>, notch_lower <dbl>, notch_upper <dbl>,
#> #   medcouple <dbl>, median_lower <dbl>, median_upper <dbl>, iqr <dbl>,
#> #   rcv <dbl>, biweight <dbl>, mean <dbl>, n_outliers <int>,
#> #   expected_outliers <dbl>
res$outliers
#> # A tibble: 20 × 5
#>    variable   row     id  value out
#>    <fct>    <int>  <int>  <dbl> <chr>
#>  1 Ca         182 121370 1.45   upper
#>  2 Ca         248 121094 0.173  lower
#>  3 Mg          98 121144 0.365  upper
#>  4 Mg         140 121151 0.359  upper
#>  5 Mg         167 121035 0.362  upper
#>  6 Mg         248 121094 0.0527 lower
#>  7 P          248 121094 0.0751 lower
#>  8 P          274 121096 0.0847 lower
#>  9 P          349 121571 0.522  upper
#> 10 P          351 121599 0.436  upper
#> 11 K            1 121060 3.68   upper
#> 12 K          155 121379 0.829  lower
#> 13 K          248 121094 0.497  lower
#> 14 K          274 121096 0.925  lower
#> 15 K          349 121571 4.04   upper
#> 16 S           39 121305 0.35   upper
#> 17 S           96 121344 0.36   upper
#> 18 S          130 121127 0.33   upper
#> 19 S          219 121633 0.39   upper
#> 20 S          331 121562 0.37   upper

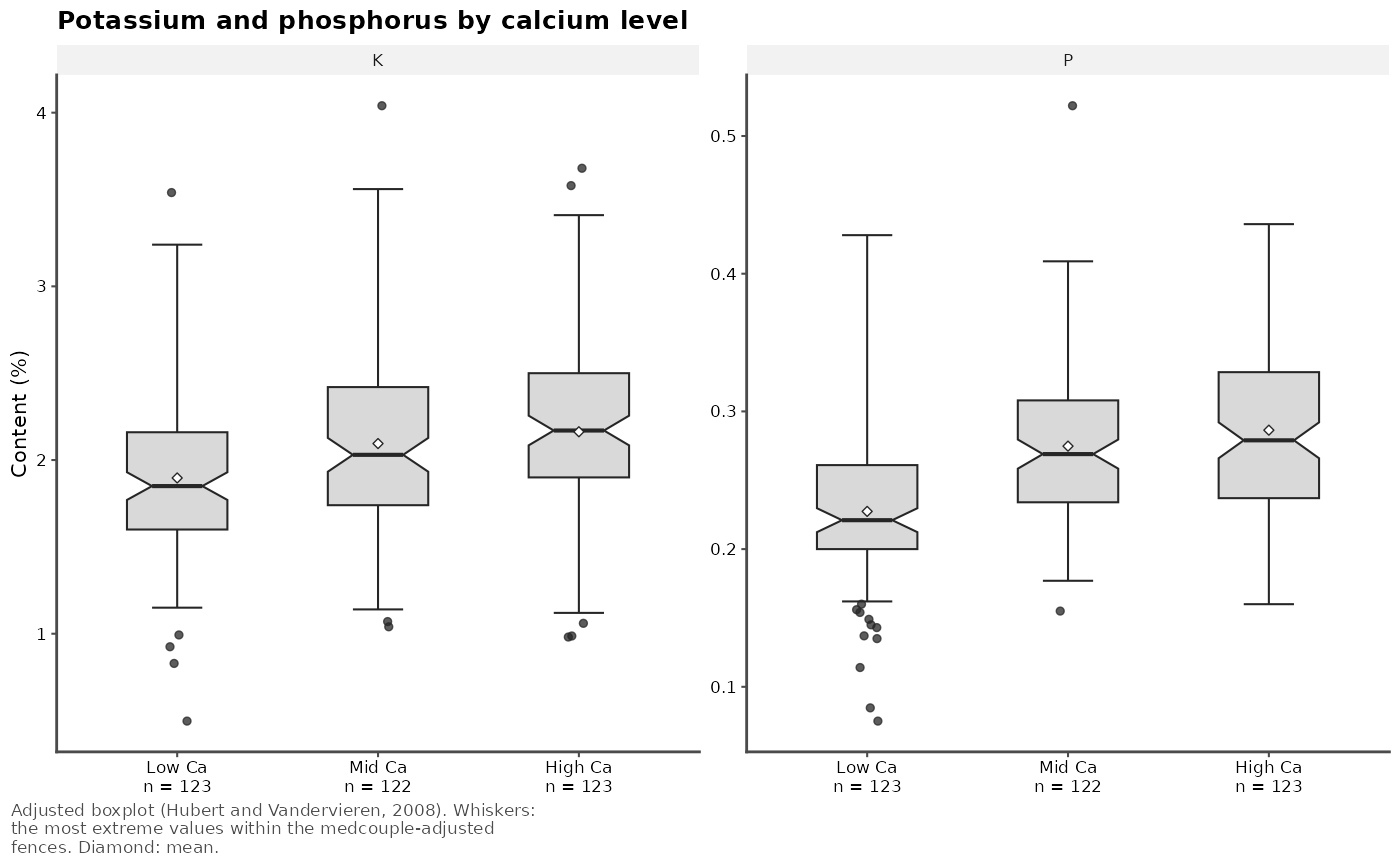

# potassium and phosphorus by calcium level, with notches and means: a
# figure of a journal column
minerals$Ca_level <- cut(minerals$Ca, quantile(minerals$Ca, 0:3 / 3),
                         labels = c("Low Ca", "Mid Ca", "High Ca"),
                         include.lowest = TRUE)
p <- adjusted_boxplot(minerals[c("K", "P", "Ca_level")], group = Ca_level,
                      notch = TRUE, show_mean = TRUE, ylab = "Content (%)",
                      title = "Potassium and phosphorus by calcium level",
                      base_size = 8)
p

# ggplot2::ggsave("by_calcium.pdf", p, width = 85, height = 75, units = "mm")

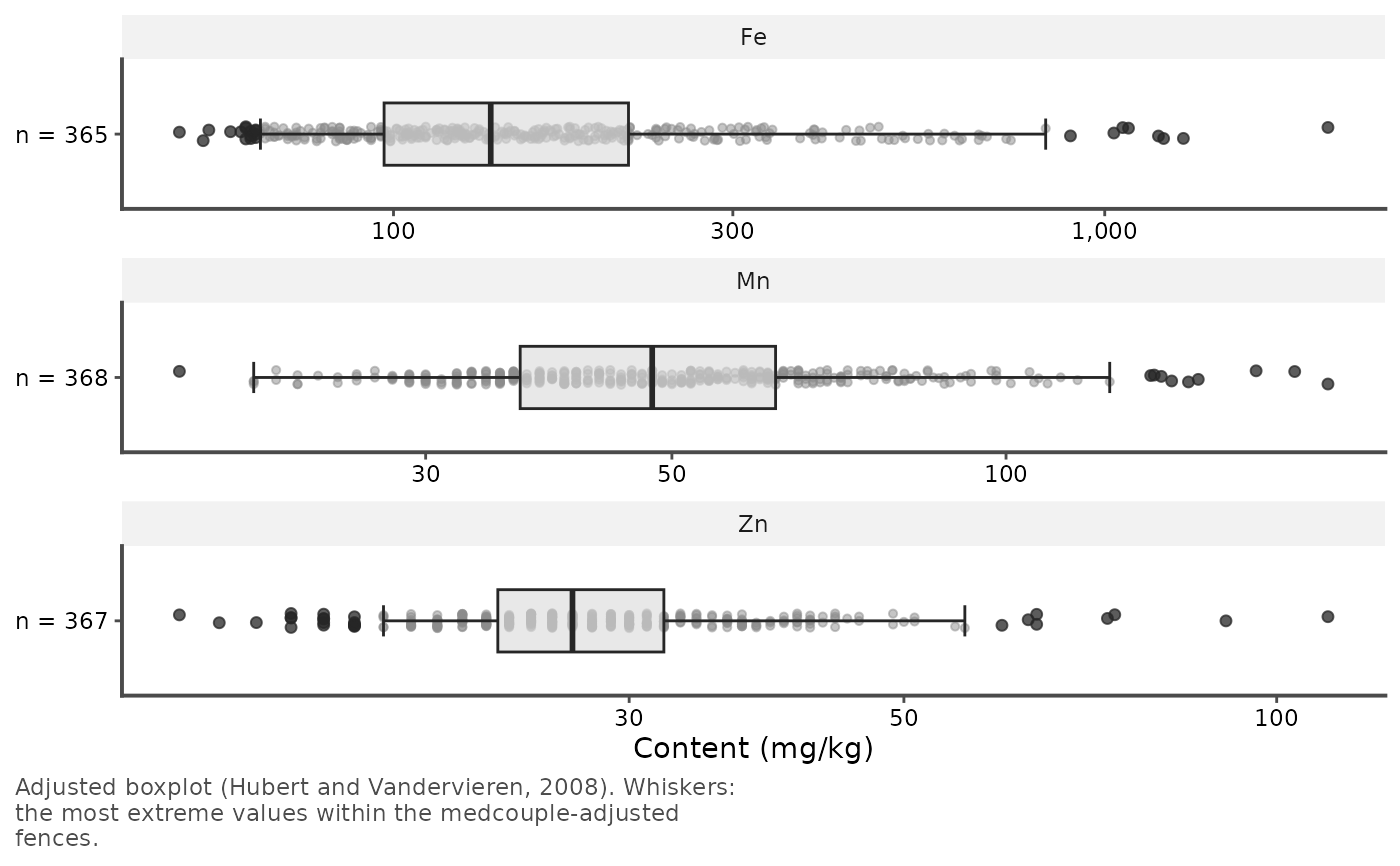

# trace elements on a logarithmic axis, horizontal, with all the samples
traces <- forageLIBS[c("Fe", "Mn", "Zn")]
adjusted_boxplot(traces, log = TRUE, horizontal = TRUE, points = "all",
                 ylab = "Content (mg/kg)")
