Plotting of Spectra

Spectrum plots are commonly x–y plots in which the x-axis represents the wavelength and the y-axis represents intensity of a spectrum's signal. The function allows to plot a spectrum or several spectra in a single plot, identified either by an id (for example, the samples or spectra id) or by a target variable (for example, the concentration of a chemical element). The spectra can be split into panels by a grouping variable, summarized by their mean or median, and labeled with the emission lines they show.

Usage

plot_spectra(
  x,
  id = NULL,
  colvar = NULL,
  .interactive = FALSE,
  drop_na = FALSE,
  offset = NULL,
  panel = NULL,
  layout = c("vertical", "horizontal"),
  grid = FALSE,
  color_as = c("line", "fill"),
  legend = c("none", "right", "top", "bottom", "inside"),
  legend_title = NULL,
  xlab = "Wavelength (nm)",
  ylab = "Intensity (arb. units)",
  title = NULL,
  lines = NULL,
  palette = "viridis",
  base_size = 11,
  linewidth = 0.5,
  xlim = NULL,
  scales = c("fixed", "free_y"),
  panel_tags = FALSE,
  label_spectra = FALSE,
  summary = c("none", "mean", "median"),
  rasterize = FALSE
)

Arguments

x: data frame or tibble of the spectra.
id: optional (NULL by default). Column name of a factor variable that identified each spectrum.
colvar: optional (NULL by default). Column name of a numeric variable to be display in color scale.
.interactive: optional (FALSE by default). When set to TRUE enables interactive plot.
drop_na: Optional (FALSE by default). Remove rows with NA intensity if drop_na is TRUE.
offset: Optional (NULL by default). The offsets between successive spectra, to separate them: a number (vertical offset, in intensity units), or two numbers c(horizontal, vertical) (in nm and intensity units). The spectrum of row i is shifted by (i - 1) times the offsets, so that the first one stays in place. With panel, the rows are counted in each panel, so that the first spectrum of every panel stays in place. With summary, the summary spectra are offset.
panel: Optional (NULL by default). Column name of a grouping variable: the spectra of each group are drawn in a separate panel.
layout: The arrangement of the panels: "vertical" (default), one above the other, or "horizontal", side by side. Ignored without panel.
grid: A logical: draw grid lines at the major breaks of the axes (FALSE, default).
color_as: How the colors of colvar (or of id, without colvar) are shown: as the color of the lines ("line", default), or as the fill of the area under each spectrum ("fill").
legend: The position of the legend of colvar (a color bar) or id: "none" (default), "right", "top", "bottom", or "inside" (the top right corner of the plot).
legend_title: The title of the legend. Default is the name of colvar (or id); give it with units, such as "K (%)".
xlab, ylab: The axis titles. Default are "Wavelength (nm)" and "Intensity (arb. units)".
title: The plot title. A long title is split into a title and a subtitle.
lines: Optional table of emission lines, such as returned by libs_lines(): a data frame with the columns species (such as "K I") and wavelength (nm). Each line within the wavelength range is marked and labeled (see Details).
palette: The colors of colvar or id: the name of a viridis palette ("viridis", default, "magma", "inferno", "plasma", "cividis", "rocket", "mako" or "turbo"), all readable by colorblind readers and in grayscale except "turbo", or a vector of at least two colors, interpolated for colvar and for the levels of id when there are fewer colors than levels.
base_size: The size of the text, in points. Default is 11; use the text size of the journal (often 7 to 9 points) for a figure saved at its printed size. The axis lines and labels scale with it.
linewidth: The width of the spectra lines. Default is 0.5; about 0.3 suits small figures.
xlim: Optional wavelength range c(from, to), in nm: only the channels in this range are drawn.
scales: "fixed" (default), the same intensity axis for all panels, or "free_y", an intensity axis fitted to each panel.
panel_tags: A logical: tag the panels (a), (b), (c), ... before their labels (FALSE, default).
label_spectra: A logical: label each spectrum at its right end (FALSE, default), with its id, else its value of colvar, else its row number (or "Mean"/"Median" for summaries). Most useful for spectra stacked by offset.
summary: "none" (default), each spectrum drawn; "mean", the mean spectrum of each group with a band of plus or minus one standard deviation; or "median", the median spectrum of each group with a band of the first to third quartiles (see Details).
rasterize: FALSE (default), TRUE, or a resolution in dpi: draw the spectra as an image, of 300 dpi with TRUE, within an otherwise vector plot (see Details). Ignored for interactive plots.

Value

Object of class ggplot or of class plotly if .interactive = TRUE.

Details

This function is based on the ggplot2 package, thus allowing users to easily add or modify different components of the plot. Each row of x is drawn as a separate line. All columns other than id, colvar and panel must be named by their wavelength.

Filled spectra. With color_as = "fill", the area between each spectrum and its baseline (zero intensity, shifted by offset) is filled, with the spectrum drawn as a thin dark line. Overlaid spectra are filled with translucent colors. Stacked spectra (with a vertical offset) are filled with opaque colors and drawn from the back to the front (from the top to the bottom of the stack), so that the front spectra hide the back ones, as in a waterfall plot.

Detectors. The spectra are not drawn across the gaps between detectors (wavelength steps of more than 5 times the channel spacing), and the channels of overlapping detectors (where the wavelengths step back in column order) are drawn as separate lines, not joined in a zigzag.

Summaries. With summary = "mean", each group of spectra is drawn as its mean spectrum, in a band of plus or minus one standard deviation; with summary = "median", as its median spectrum, in a band from the first to the third quartile. The groups are the panels and, within them, the values of id; the color of colvar is then the mean of colvar in each group. The band is not drawn with color_as = "fill".

Emission lines. Each line of lines within the wavelength range is marked by a dashed vertical line, labeled with its species and wavelength above the plot (above the top panels). Lines closer than 2% of the wavelength range share a label, such as "Ca II 393.37, 396.85". The markers are at the tabulated wavelengths: with a horizontal offset, they match the first spectrum of each panel. Over a wide range, keep the strongest lines, for example with the top or min_relative arguments of libs_lines(), or labels become long.

Publication figures. Journals print figures about 85 mm wide for a single column and 175 mm for a double column, with text of 7 to 9 points. Make the plot at its printed size, with base_size set to the text size, and save it with ggplot2::ggsave(), in a vector format (PDF or EPS) or as a TIFF of 600 dpi, for example ggsave("figure.pdf", p, width = 85, height = 65, units = "mm"). Many long spectra make large and slow vector files: rasterize = TRUE draws the spectra as an image within the plot, keeping the text, axes and markers as vectors (this needs the ragg package).

Author

Christian L. Goueguel

Examples

data(forageLIBS)
wl <- as.numeric(names(forageLIBS)[-(1:14)])
k_lines <- names(forageLIBS)[-(1:14)][wl > 764 & wl < 772]

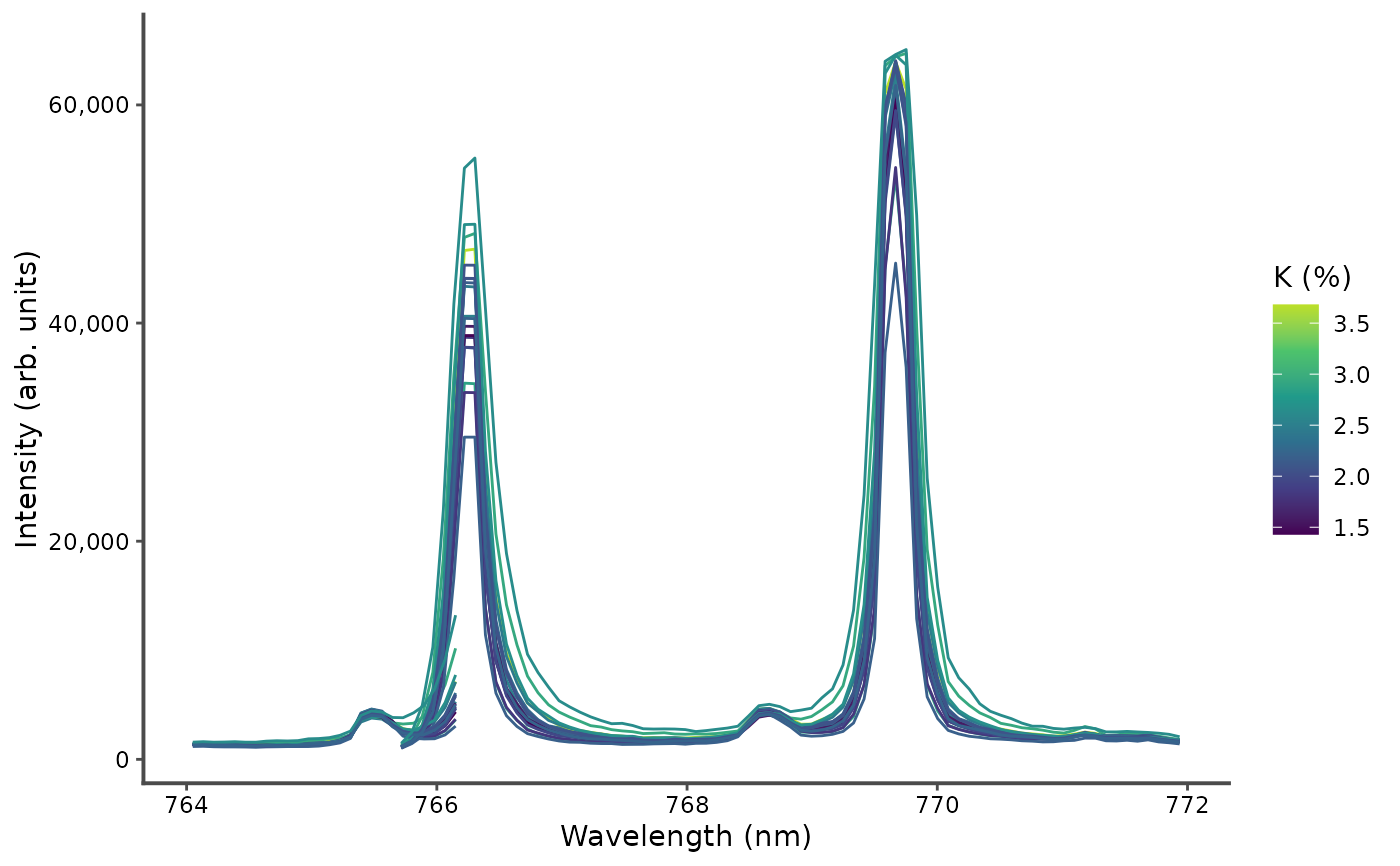

# the K I resonance lines, colored by potassium content
plot_spectra(forageLIBS[1:20, c("K", k_lines)], colvar = K, legend = "right",
             legend_title = "K (%)")

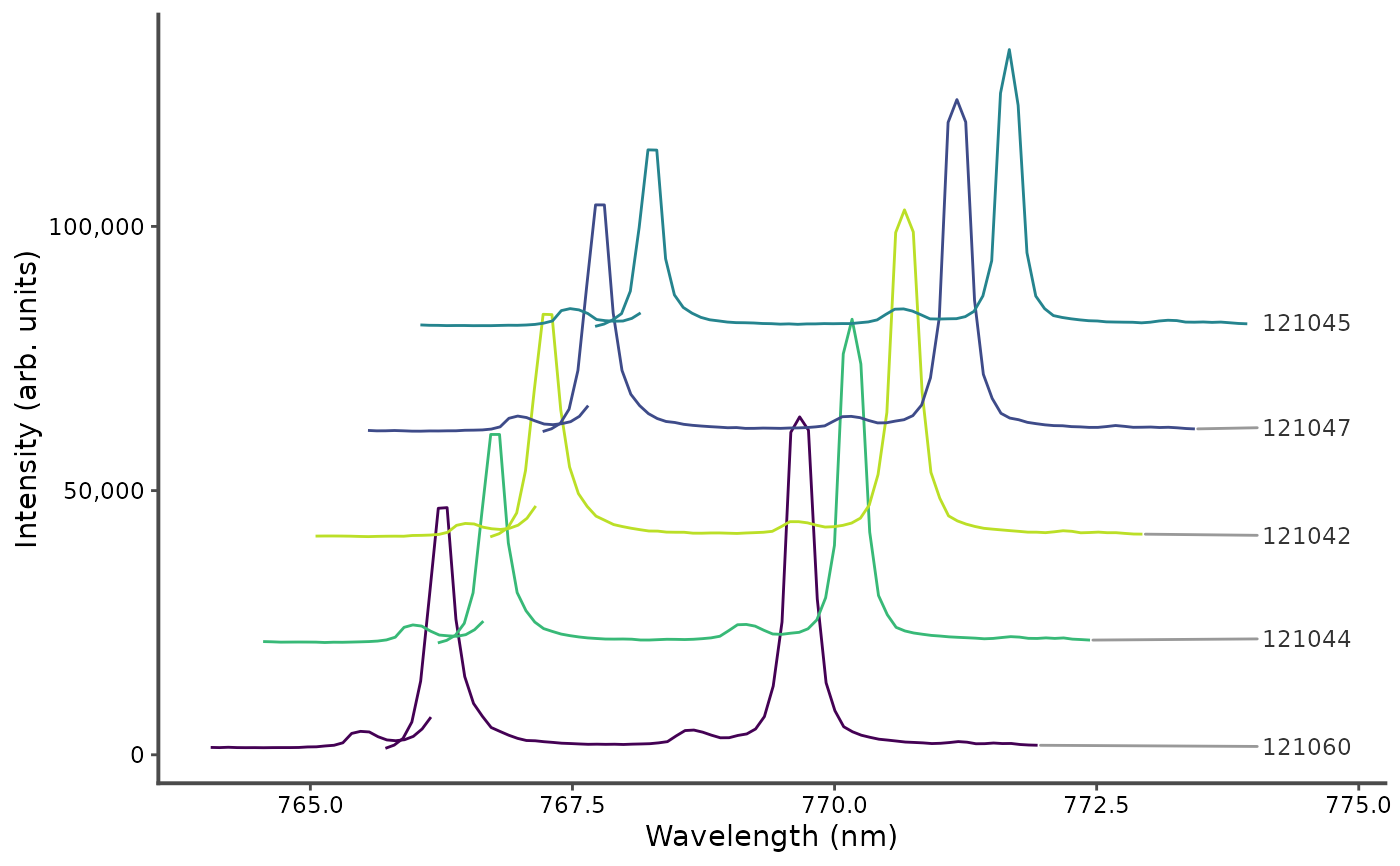

# five spectra stacked, each shifted up by 20000 counts and right by 0.5 nm,
# labeled at their right end
plot_spectra(forageLIBS[1:5, c("Measurement", k_lines)], id = Measurement,
             offset = c(0.5, 20000), label_spectra = TRUE)

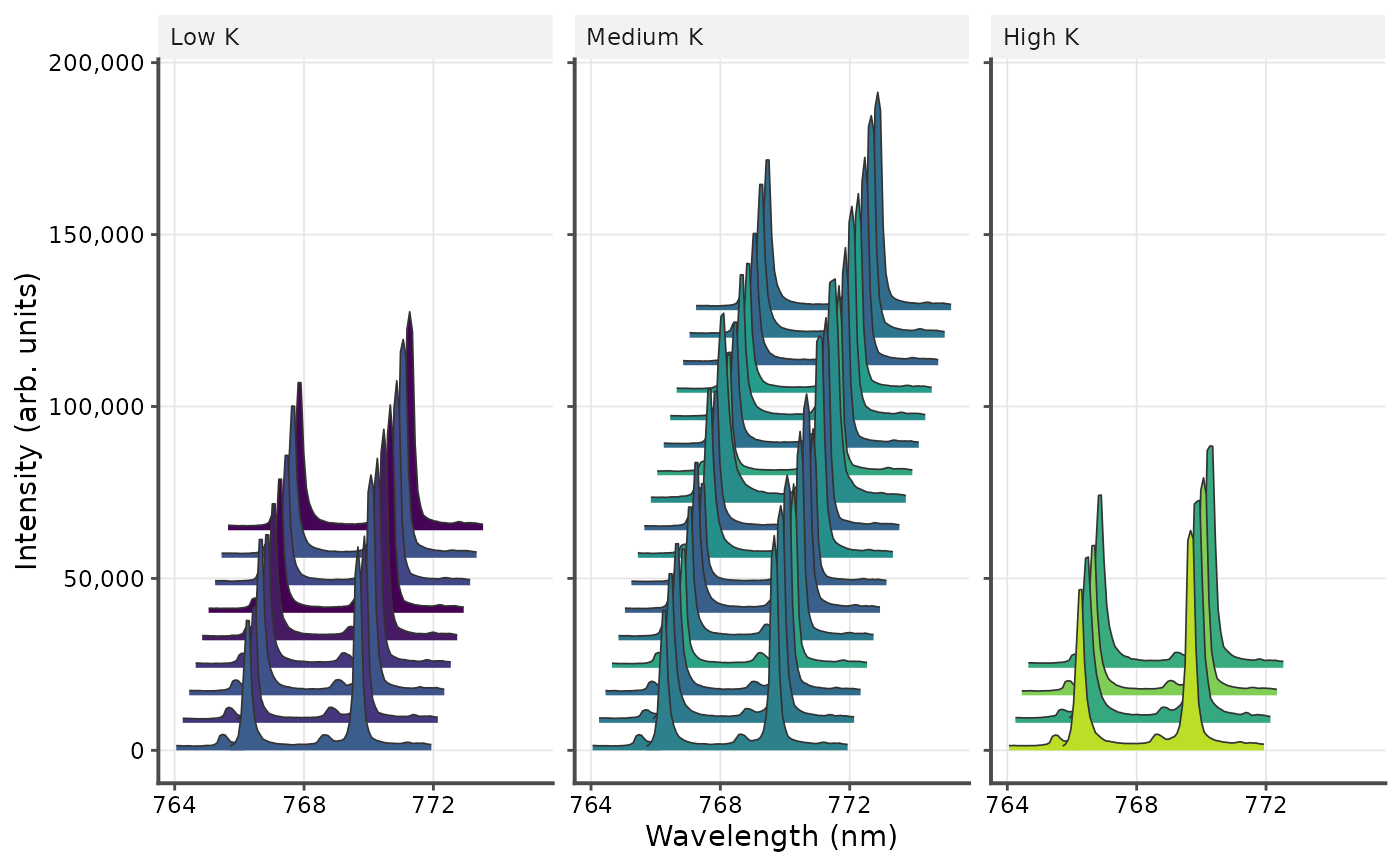

# one panel per potassium level, side by side, with the area under the
# spectra filled by potassium content and grid lines
spectra <- forageLIBS[1:30, c("K", k_lines)]
spectra$level <- cut(spectra$K, 3, labels = c("Low K", "Medium K", "High K"))
plot_spectra(spectra, colvar = K, panel = level, layout = "horizontal",
             offset = c(0.2, 8000), color_as = "fill", grid = TRUE)

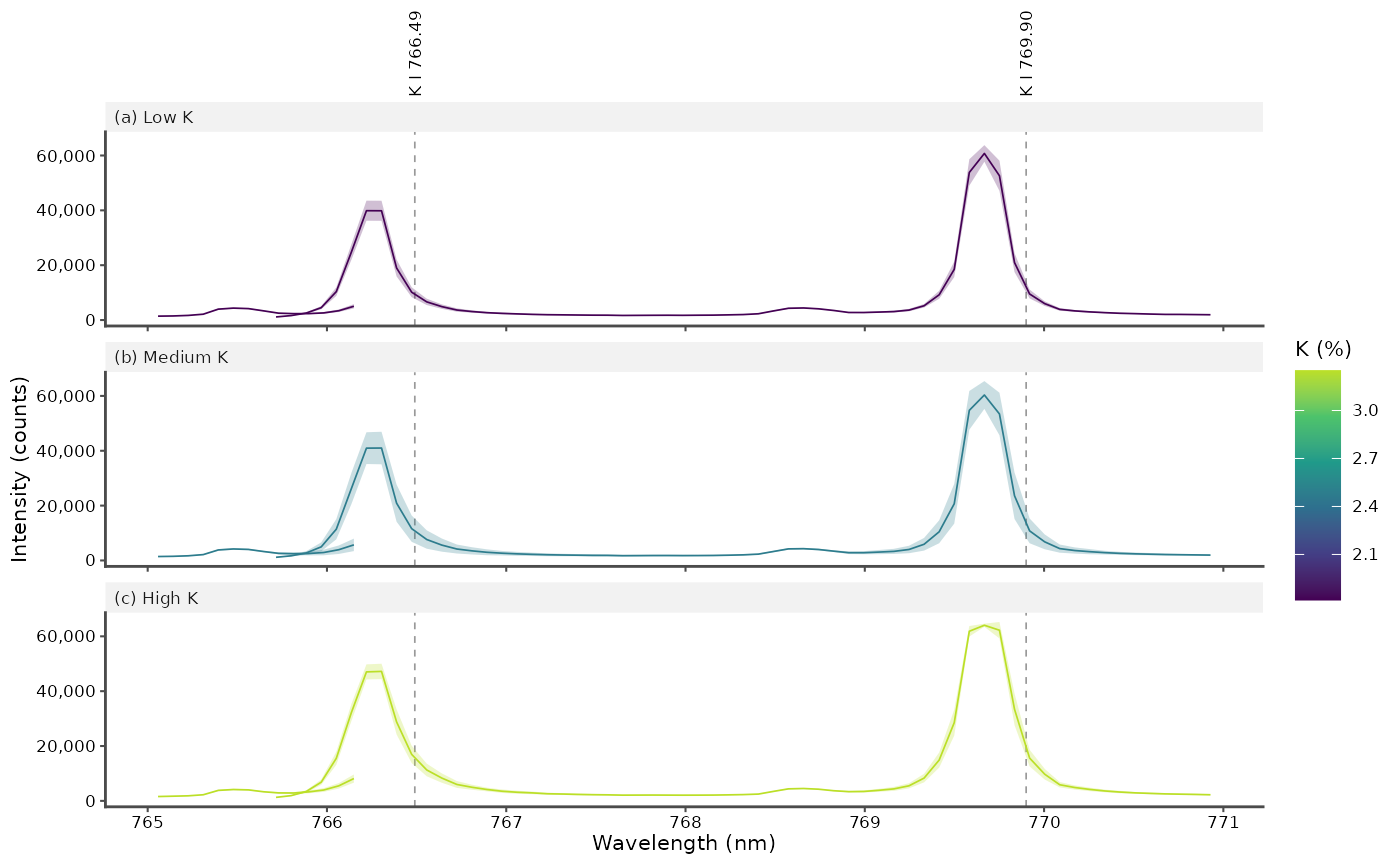

# a figure for a journal column: the mean spectrum of each potassium level,
# with the K I lines labeled (from libs_lines() in practice)
lines <- data.frame(species = "K I", wavelength = c(766.49, 769.90))
p <- plot_spectra(spectra, colvar = K, panel = level, summary = "mean",
                  lines = lines, panel_tags = TRUE, legend = "right",
                  legend_title = "K (%)", ylab = "Intensity (counts)",
                  base_size = 8, linewidth = 0.3, xlim = c(765, 771))
p

# ggplot2::ggsave("figure.pdf", p, width = 85, height = 90, units = "mm")
